产品规格
| 产品名称 | 规格/mm | 数量/pcs |
| JGS1 | φ30*5mm | 1 |
镀膜要求
Reflectivity: Rs>99.5%; Rp>99.0%;
Angle of Incidence (AOI), °: 45;
Clear aperture: >90%;
S1 Surface quality, S-D: 20-10;
S1 Flatness, PV: 1/4λ @ 632.8 nm;
Parallelism error: <3 arcmin;
Protective chamfer: <0.25 mm x 45°;

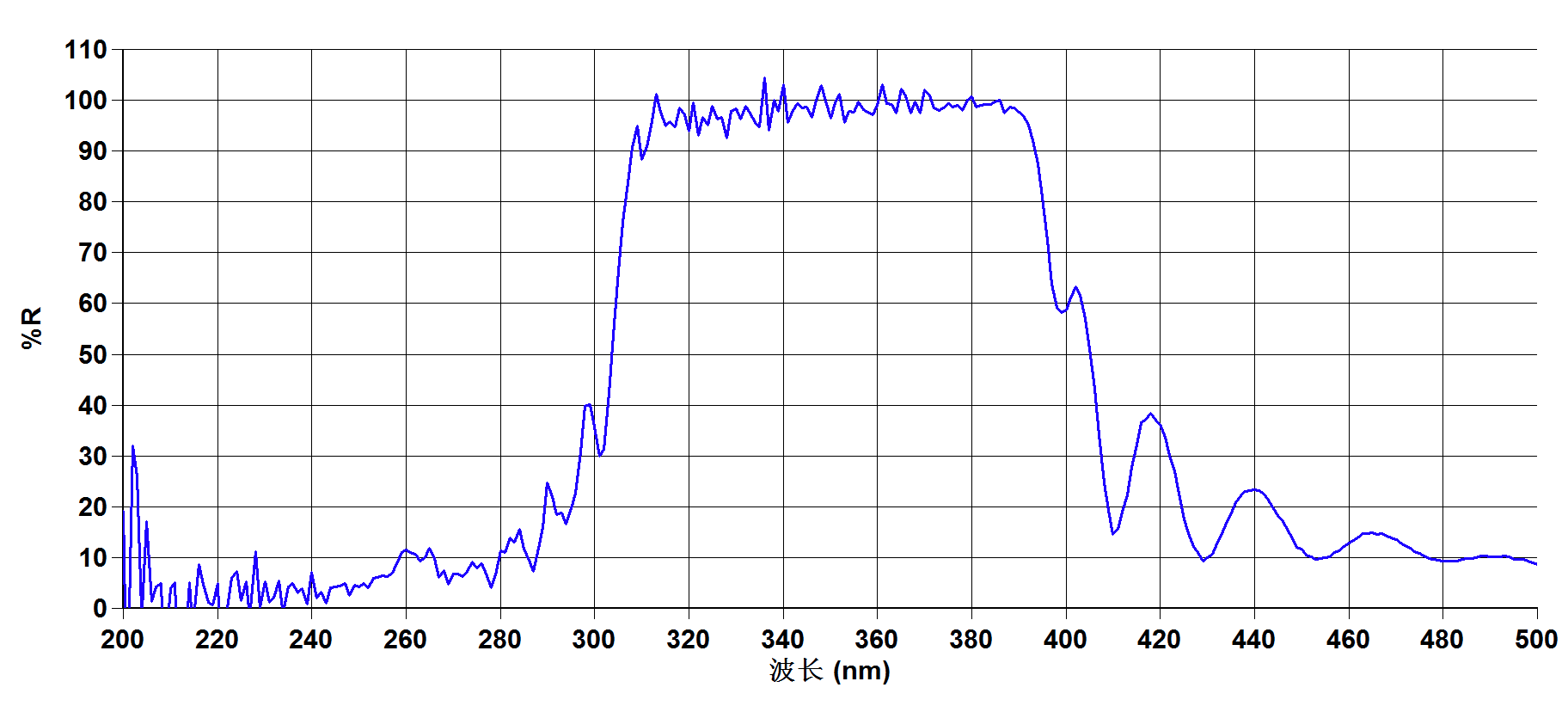

镀膜测试曲线
 |
| AOI@45° |
